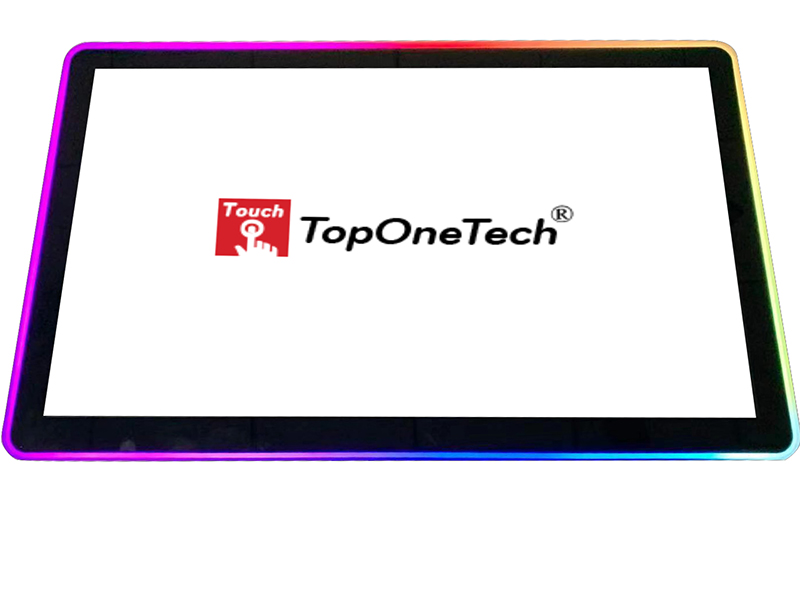

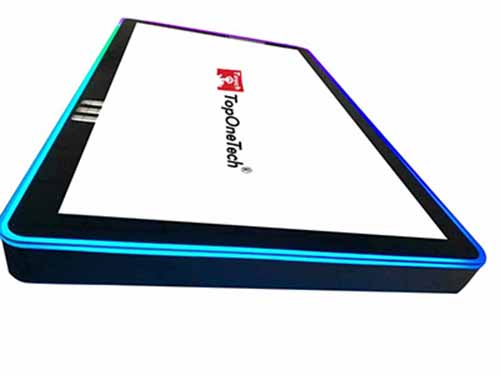

The new model is fresh out of the oven. It is available in conventional sizes 23.8 inch, 27 inch, 32 inch. Other sizes are available. We also provide customization services to customize the size and model you want, and can quickly draw 3D drawings and quickly produce samples for you.
Top One Tech’s this new model open frame monitor with touch have a long-lasting product cycle because the enclosure is controlled by Top One Tech’s specifications. Future panel improvements are therefore possible without external changes. It integrate with the Top One Tech’s PCAP technology touch screen.
Features:
◪Bezel seal standard：NEMA3 and IEC IP65
◪Long lasting product cycle-enclosure controlled by Top One Tech specifications
◪Future generation panels phased-in without external changes
◪High quality panel with high brightness , high contrast ratio and broad viewing angle
◪Multiple mounting options including VESA mount, horizontal or vertical bracket-mount
◪Compact and slim profile for easy integration from side, top and bottom
Top One Tech’s PCAP touchscreen on pure glass for the ultimate in image quality◪
◪Finger or gloved hand operation
◪USB touch interface port
◪ VGA/DVI/HDMI input video format
Anti-glare LCD Panel |
IP rated front panel | IP65 |
|
Screen diagonal (Inch/cm): | 27/68.58 |
Display active screen size: | 59.76x33.61 |
Aspect ratio: | 16:09 |
Physical resolution: | 1920×1080 |
Maximum showable | 1920×1200 |
resolution (TPCs: external): |
Colours displayed: | 16.7M |
Brightness (cd/m2): | 300 |
Contrast: | 3000:01:00 |
Visual Angle | 178/178(°) |
horizontal/vertical : |
Touch Panel |
Touch Technology | Projected Capacitive |
10-point Multitouch |
Touch Connector | USB or RS232 |
Touch Panel Drivers | Windows; Linux; Mac; |
Android |
External Connectors |
Video | 1x VGA |
1x HDMI |
Audio | 1x PC-Audio |
1x Earphone-Out |
Touch Connector | 1x USB 1x RS232 |
Connectors | 1x 12V DC-IN |
|
