19 Inch Multi-touch Monitor Customization Solution

2022-03-07

The multi-touch screen allows you to use two fingers or multiple fingers, or multiple people to achieve the perfect operation screen at the same time, having the functions and advantages of the traditional single-point infrared touch screen. But the reaction speed has been further improved, 5ms can be achieved. The click, drag, zoom, zoom out, etc. can be operated simply and accurately.


1. Negotiation

We received a email from Korea. He wanted a industrial open frame Multi-touch monitor for his product upgrade requirements.And he said those display must be multipoint and could be compatible with his cabinet structure .


2. Design

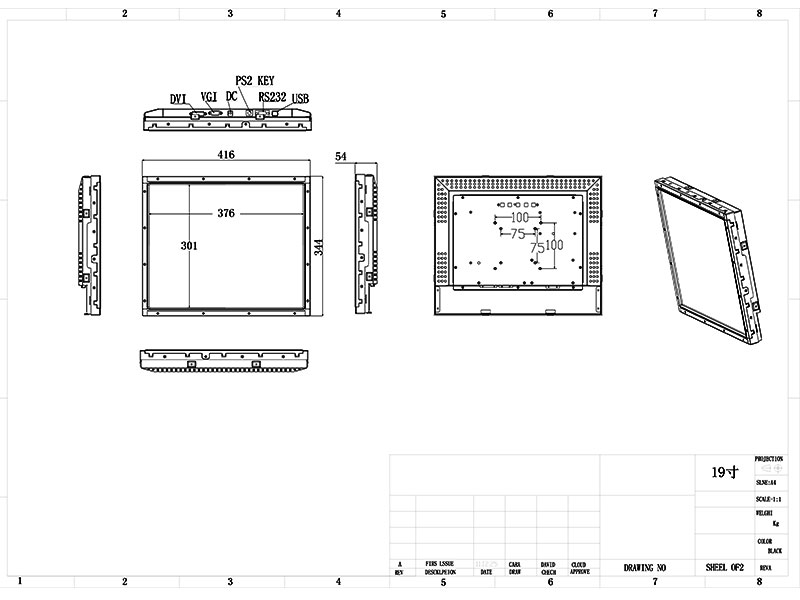

This is our strength and easy for us. We started to design the open frame touch monitor solution.Below is our designed drawing for him.


3. Making Samples

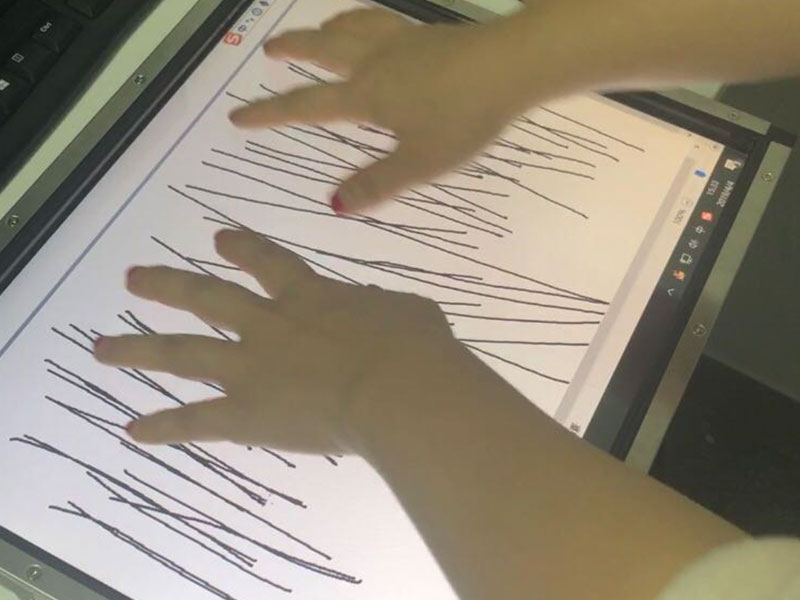

1. Samples picture

19" multi-touch monitor


4. Mass Production

When the customer approves the sample, we will mass manufacture for you. There is the whole process of manufacture, we are always careful to complete each step.

Touch monitors Production flow chart:Materials procurement--Incoming material inspection--Fit the touch screen and LCD screen--, Assembling the AD board-- the inverter board, and the keypad--Data line connection--Shell assembly--Finished product inspection--Aging test--external assessment--package


5. FQC

After the production is completed, we will perform a 100% inspection of the display to ensure that each product is 100% qualified.

All the products we provide must go through 9 inspection tests. Screen aging test and high and low temperature test can improve the reliability of the product effectively. And we can provide you with the best quality.

We have those test types:1.The first one is to start the test at a temperature of 40-50°C  for 24 hours, or 48 hours at normal temperature to observe whether the panel of the product is stable. 2.Temperature & Humidity Test: Usually, it will be operated at a low temperature of -10°C and a high temperature of 70°C to ensure that the product can adapt to a high-intensity working environment.

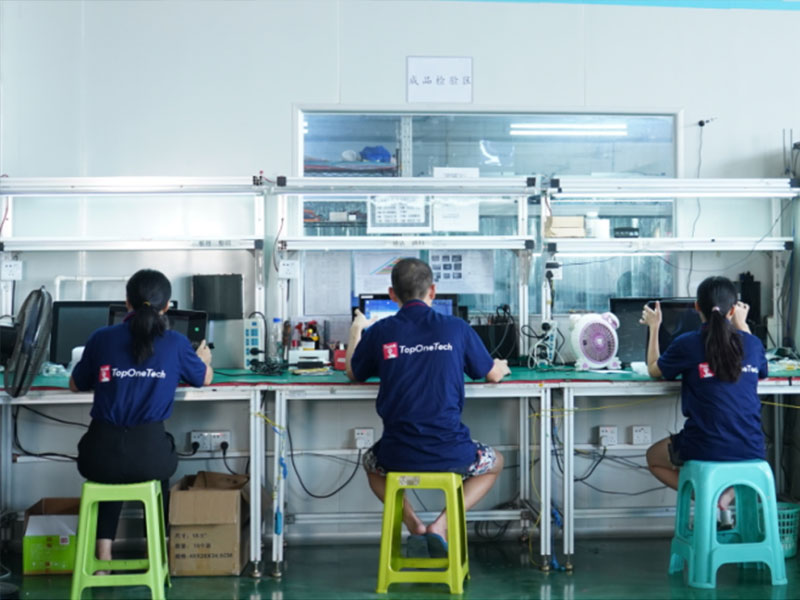

1. The QC photos



6. Shipment



7. Customer Feedback

The customer sent us a two photos of touch screen that was working after installation. They were very compatible with the machine.

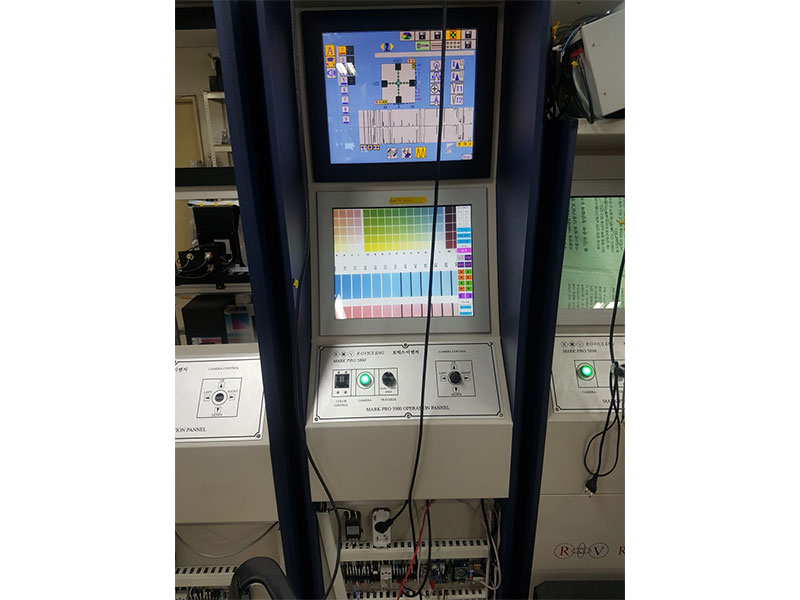

1. The front after installation

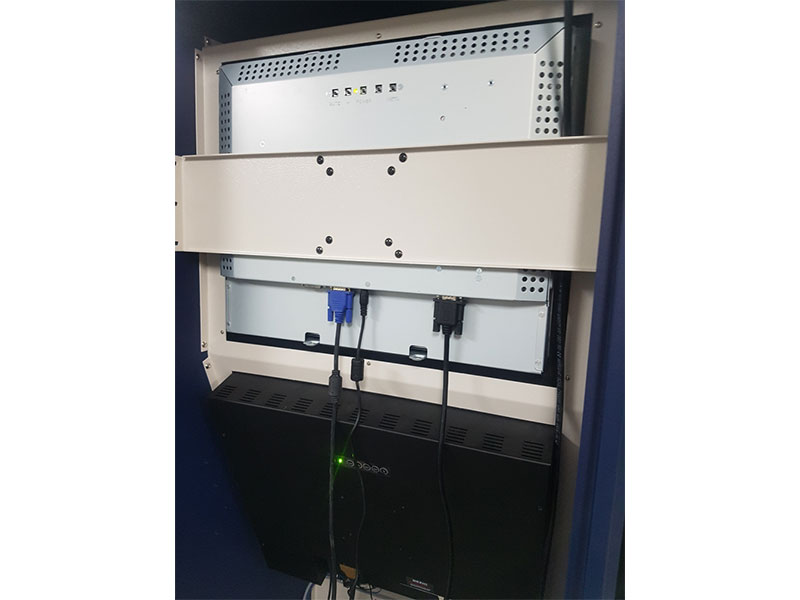

2. The back after installation
