PRODUCT SPECIFICATIONS

Model

TOT215UCA006(LED)

Screen Size

21.5"

Active Area

477mm×268mm

Resolution

1920×1080@60Hz

Contrast Ratio

1000:1

Touch

PCAP

Brightness

250cd/m2

Viewing Angle (Typ.at CR>10))

Horizontal(left/right)

85°/85°

Vertical(up/down)

80°/80°

Touch Connector

USB or RS232

Housing (cm) LxWxH

52.64x32.23x4.95

Power Consumption

28W

Environment

-10~65°C

Humidity

10%~90%

Regular Warranty

1year

MOQ

1 pieces

Payment

T/T, Western Union,Credit Card,Paypal,L/C

Delivery Time

5-8 working days

Start port

EXW Shenzhen,Guangdong

Certification

FCC,CE,ERP


◆ 21.5 inch LCD open frame PCAP touch monitor (with external acrylic led bar) - TopOneTech
◆ 21.5 inch LCD open frame PCAP touch monitor (with external acrylic led bar) - TopOneTech
www.oemtouchmonitor.com/detail/1342.html
998

PRODUCT INTRODUCTION

◆ 21.5 inch LCD open frame PCAP touch monitor (with external acrylic led bar) - TopOneTech

Toponetech`s 21.5 inch gaming machine monitor with External Acrylic LED Bar (Side) is available in both standard and custom touchscreen monitor for gaming cabinet sizes, Toponetech’s projected capacitive touch screens are form, fit or function replacements for 3M™ and Elo™ touch sensors.



*Bezel seal standard:NEMA3 and IEC IP65

*Long lasting product cycle-enclosure controlled by Top One Tech specifications
*Future generation panels phased-in without external changes
*High quality panel with high brightness , high contrast ratio and broad viewing angle
*Multiple mounting options including VESA mount, horizontal or vertical bracket-mount
*Compact and slim profile for easy integration from side, top and bottom
*Top One Tech’s PCAP technology on pure glass for the ultimate in image quality
*Finger or gloved hand operation
*USB touch interface port
*VGA/DVI/HDMI input video format
*Worldwide agency approvals

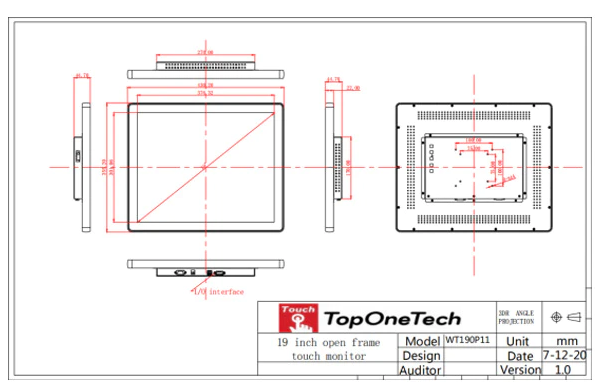

DRAWING


APPLICATIONS

Gaming display, Vending machine, Self-service terminal, ATM machine, Jukebox, Education.
