Top one tech is a touch screen display supplier, specialized in custom touch display prototyping and low volume manufacturing services since 2010!

Hablamos español, no dude en contactarnos: Whatsapp:008613631610695

18.5 inch open frame LCD touchscreen monitor (with external acrylic led bar)- TopOneTech_Gaming Monitors with External Acrylic LED Bar (Front)_

Home > Products > Touch screen monitors > Gaming Monitors with External Acrylic LED Bar (Front) > 18.5 inch open frame LCD touchscreen monitor (with external acrylic led bar)- TopOneTech

18.5 inch open frame LCD touchscreen monitor (with external acrylic led bar)- TopOneTech

18.5 inch open frame LCD touchscreen monitor (with external acrylic led bar)- TopOneTech
18.5 inch open frame LCD touchscreen monitor (with external acrylic led bar)- TopOneTech
18.5 inch open frame LCD touchscreen monitor (with external acrylic led bar)- TopOneTech
18.5 inch open frame LCD touchscreen monitor (with external acrylic led bar)- TopOneTech
18.5 inch open frame LCD touchscreen monitor (with external acrylic led bar)- TopOneTech
18.5 inch open frame LCD touchscreen monitor (with external acrylic led bar)- TopOneTech
18.5 inch open frame LCD touchscreen monitor (with external acrylic led bar)- TopOneTech
18.5 inch open frame LCD touchscreen monitor (with external acrylic led bar)- TopOneTech

PRODUCT SPECIFICATIONS

Model

TOT185UCA016(LED)

Screen Size

18.5”

Active Area

410.8(mm)×230.4(mm)

Resolution

1366*768 @ 60Hz

Contrast Ratio

1000:1

Operating Temp

-10 ~ +65(°C)

Touch

PCAP

Brightness

250 cd/m2

Viewing Angle (Typ.at CR>10))

Horizontal(left/right)

178/178(°)

Vertical(up/down)

178/178(°)

Connectors

1x 12V DC-IN

Power Consumption

28W Max.

Environment

0 ~ 50(°C)

Humidity

5%-90%

Regular Warranty

1year

MOQ

1 pieces

Payment

T/T, Western Union, Credit Card, Paypal, L/C

Delivery Time

5-8 working days

Start port

EXW Shenzhen, Guangdong

Certification

FCC, CE, ERP


18.5 inch open frame LCD touchscreen monitor (with external acrylic led bar)- TopOneTech
18.5 inch open frame LCD touchscreen monitor (with external acrylic led bar)- TopOneTech
www.oemtouchmonitor.com/detail/1350.html
998

PRODUCT INTRODUCTION

18.5 inch open frame LCD touchscreen monitor (with external acrylic led bar)- TopOneTech

Toponetech`s 18.5 inch open frame monitor for gaming device with External Acrylic LED Bar (Front) is available in both standard and custom touchscreen monitors sizes, Toponetech’s projected capacitive touch screens are form, fit or function replacements for 3M™ and Elo™ touch sensors.



* Sizes: 18.5"19” 21.5” 23.8” 27” 32"(Other Sizes Available)

Touch Screen Available(Multi-touch,10points option)

* Front IP grade Waterproof(Option)

* Imported acrylic edge, light transmittance of 80%

* The handheld controller controls the LED light to flash, and the variety of lighting changes is up to 368 kinds.

* USB, HDMI, VGA, DVI, DC, PC-AUDIO, EARPHONE-OUT connectors

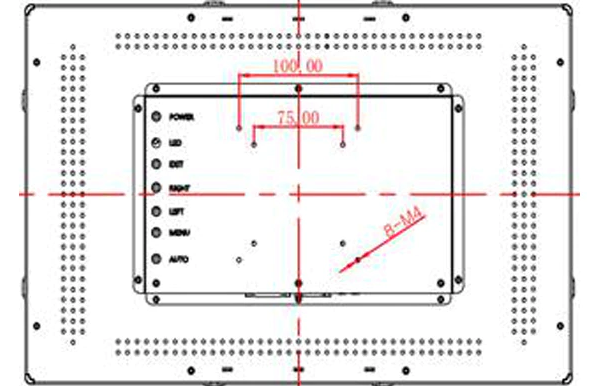

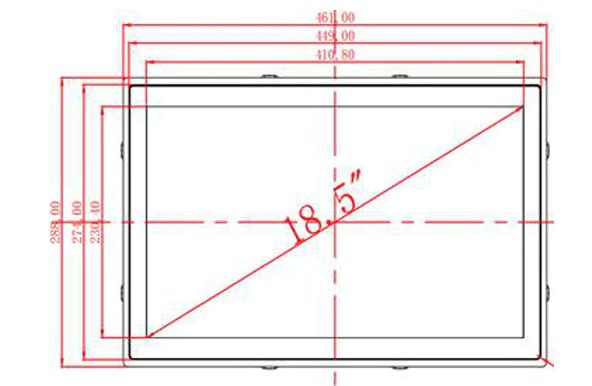

DRAWING


APPLICATIONS


PRODUCT MESSAGE
