22 inch LED open frame touchscreen monitor(PCAP multi-touch and zero-bezel type)- TopOneTech

22 inch LED open frame touchscreen monitor(PCAP multi-touch and zero-bezel type)- TopOneTech
22 inch LED open frame touchscreen monitor(PCAP multi-touch and zero-bezel type)- TopOneTech
22 inch LED open frame touchscreen monitor(PCAP multi-touch and zero-bezel type)- TopOneTech
22 inch LED open frame touchscreen monitor(PCAP multi-touch and zero-bezel type)- TopOneTech
22 inch LED open frame touchscreen monitor(PCAP multi-touch and zero-bezel type)- TopOneTech
22 inch LED open frame touchscreen monitor(PCAP multi-touch and zero-bezel type)- TopOneTech
22 inch LED open frame touchscreen monitor(PCAP multi-touch and zero-bezel type)- TopOneTech
22 inch LED open frame touchscreen monitor(PCAP multi-touch and zero-bezel type)- TopOneTech
22 inch LED open frame touchscreen monitor(PCAP multi-touch and zero-bezel type)- TopOneTech
22 inch LED open frame touchscreen monitor(PCAP multi-touch and zero-bezel type)- TopOneTech

PRODUCT SPECIFICATIONS

Model

TOT220UCA0V2

Screen Size

22”

Active Area

473.76mm x 296.1mm

Resolution

1680 x 1050

Contrast Ratio

1000:1

Touch

PCAP

Brightness

250cd/m2

Viewing Angle (Typ.at CR>10))

Horizontal(left/right)

85°/85°

Vertical(up/down)

80°/80°

Environment

Operating Temp

0~45°C

Storage Temp

-20~55°C

Humidity

Operating RH

10%~80%

Storage RH

10%~80%

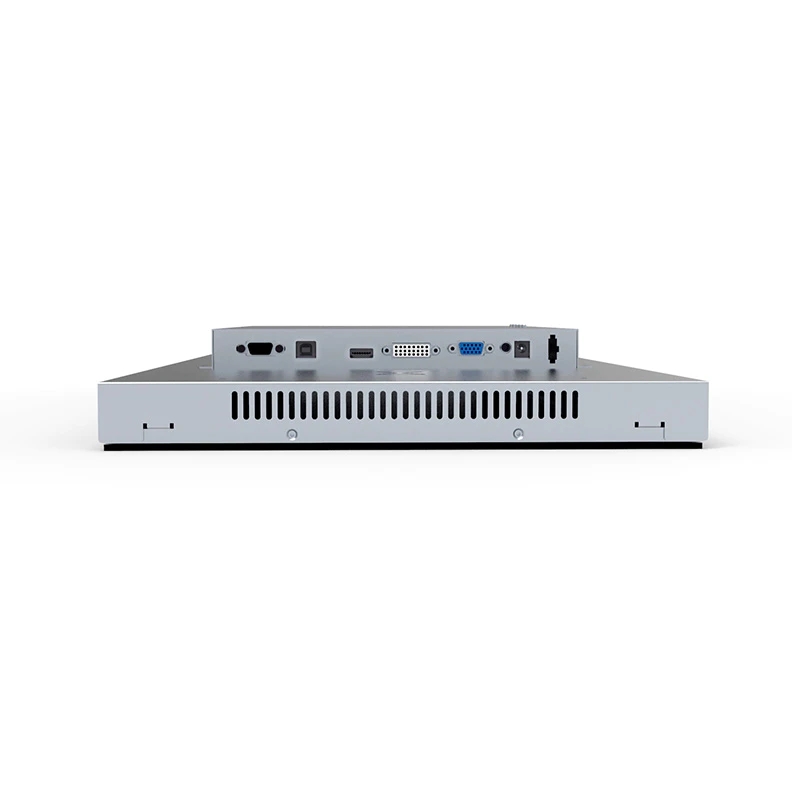

Interface

USB-B Female, RS232 DB9 Female

Product Dimension

496mm x 323mm x 62.5mm

Regular Warranty

1year

MOQ

1 pieces

Payment

T/T, Western Union, Credit Card, Paypal, L/C

Delivery Time

5-8 working days

Start port

EXW Shenzhen, Guangdong

Certification

FCC, CE, ERP


22 inch LED open frame touchscreen monitor(PCAP multi-touch and zero-bezel type)- TopOneTech
22 inch LED open frame touchscreen monitor(PCAP multi-touch and zero-bezel type)- TopOneTech
www.oemtouchmonitor.com/detail/1355.html
998

PRODUCT INTRODUCTION

22 inch LED open frame touchscreen monitor(PCAP multi-touch and zero-bezel type)- TopOneTech

Toponetech`s 22 inch gaming touch display with External Acrylic LED Bar (front and back) is available in both standard and custom casino gaming touch monitor sizes, Toponetech’s projected capacitive touch screens are form, fit or function replacements for 3M™ and Elo™ touch sensors.



* Sizes: 22"(Other Sizes Available)

Touch Screen Available

* TOT220UCA0V1  Fully Replace with 3M™ Microtouch™ C2234SW

* TOT220UCA0V2  Fully Supports Aristocrat™ Viridian WS, Gen7, Upright   Aristocrat™ Vii Slant, Aristocrat™ Viridian Hybird,Upright

* TOT220UCA0V3  Fully Supports Shuffle Master™ Equinox


DRAWING

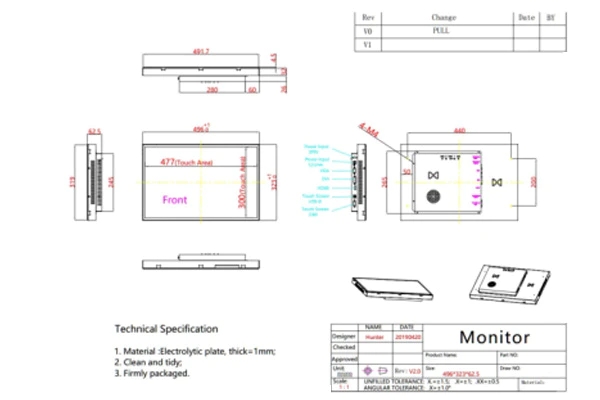

22" touch monitor 3D drawing

APPLICATIONS

22 inch touch monitor applications
