PRODUCT SPECIFICATIONS

Model

TOT150UCA002

Screen Size

15”

Active Area

305mm*229mm

Resolution

1024x768 @ 60Hz

Contrast Ratio

2000:1

Touch

Capacitive

Brightness

LCD Panel

300cd/m2 or 1000cd/m2(optional)

With Glass

260cd/m2

Viewing Angle (Typ.at CR>10))

Horizontal(left/right)

89°/89°

Vertical(up/down)

89°/89°

Power Consumption

16W Max.

Video Input

VGA and DVI,HDMI

Environment

Operating Temp

-20~70°C

Storage Temp

-30~70°C

Humidity

Operating RH

20%~100%RH

Storage RH

5%~100%RH

Regular Warranty

1year

MOQ

1 pieces

Payment

T/T, Western Union, Credit Card, Paypal, L/C

Delivery Time

5-8 working days

Start port

EXW Shenzhen, Guangdong

Certification

FCC, CE, ERP


15 inch LCD open frame touchscreen monitor (PCAP, the Water-proof, 1000 nits type) - TopOneTech
15 inch LCD open frame touchscreen monitor (PCAP, the Water-proof, 1000 nits type) - TopOneTech
www.oemtouchmonitor.com/detail/1403.html
998

PRODUCT INTRODUCTION

15 inch LCD open frame touchscreen monitor (PCAP, the Water-proof, 1000 nits type) - TopOneTech

Toponetech`s 15 inch open frame touch screen displays for outdoor application are optimized for outdoor environments. We provide customized outdoor open frame display solutions catering to varying display sizes, brightness,installation, and other customer requirements . Toponetech’s open frame touch screen montior ensure 24*7day reliability and long- life durability.



* Front Water-proof IP65

Sunlight Readable (High Brightness outdoor open frame monitors)

* High Brightness LCD with LED 1000-2500 cd/㎡

* Sizes: 7"-65"(Other Sizes Available)

* Touch Screen Available

* Front IP grade Waterproof(Option)

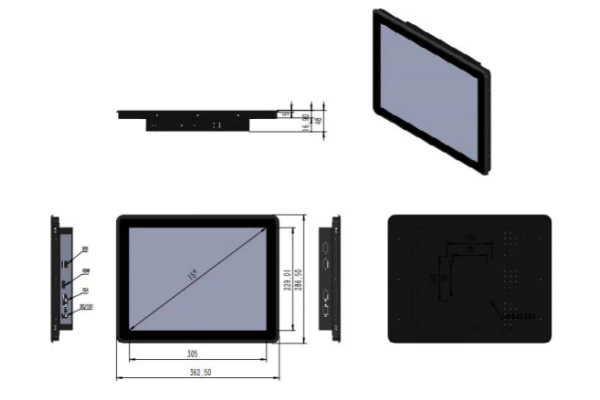

DRAWING


APPLICATIONS

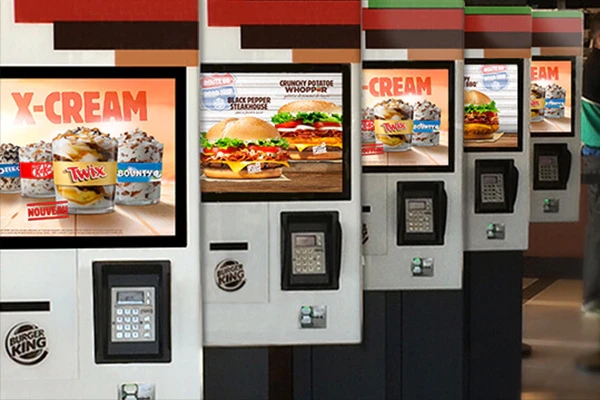

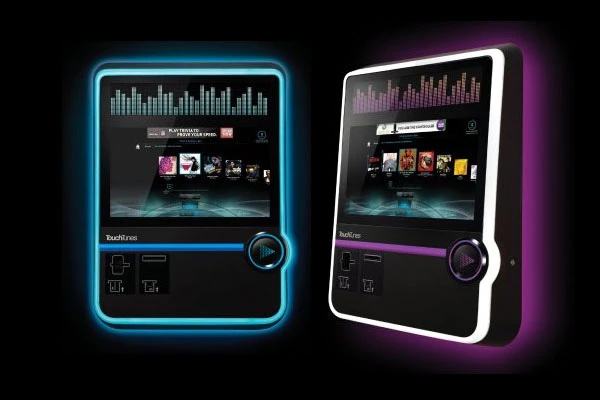

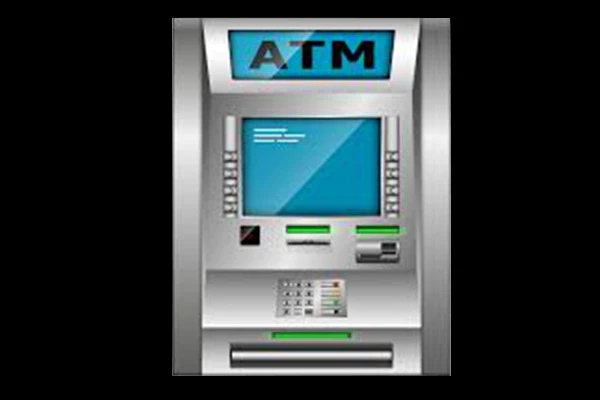

Gaming display, Vending machine, Self-service terminal, ATM machine, Jukebox, Education.
