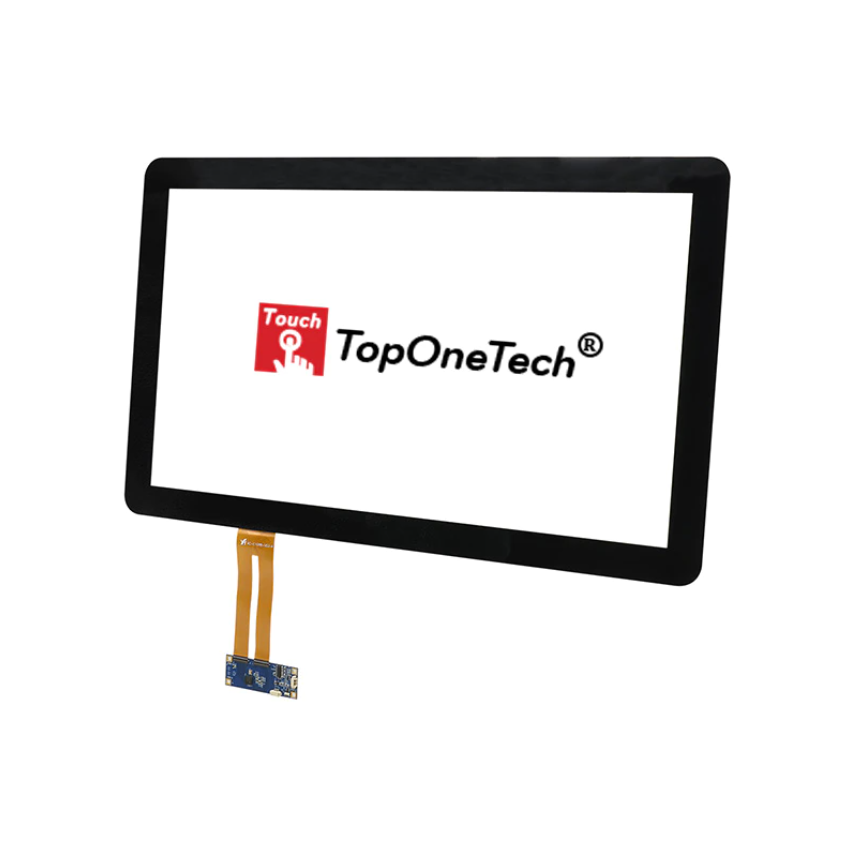

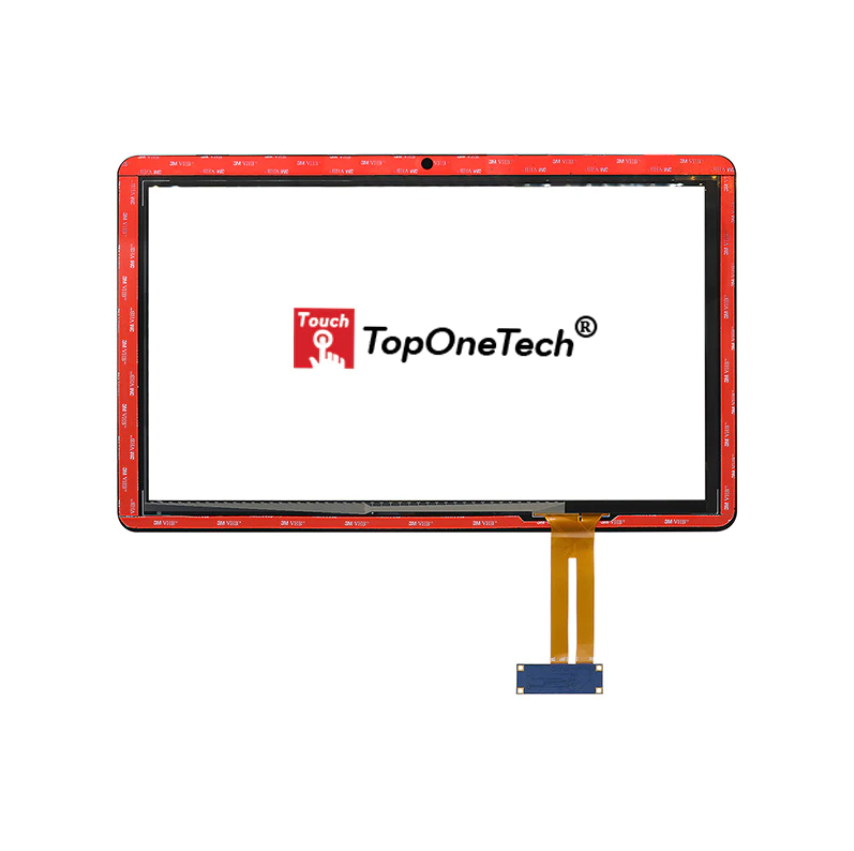

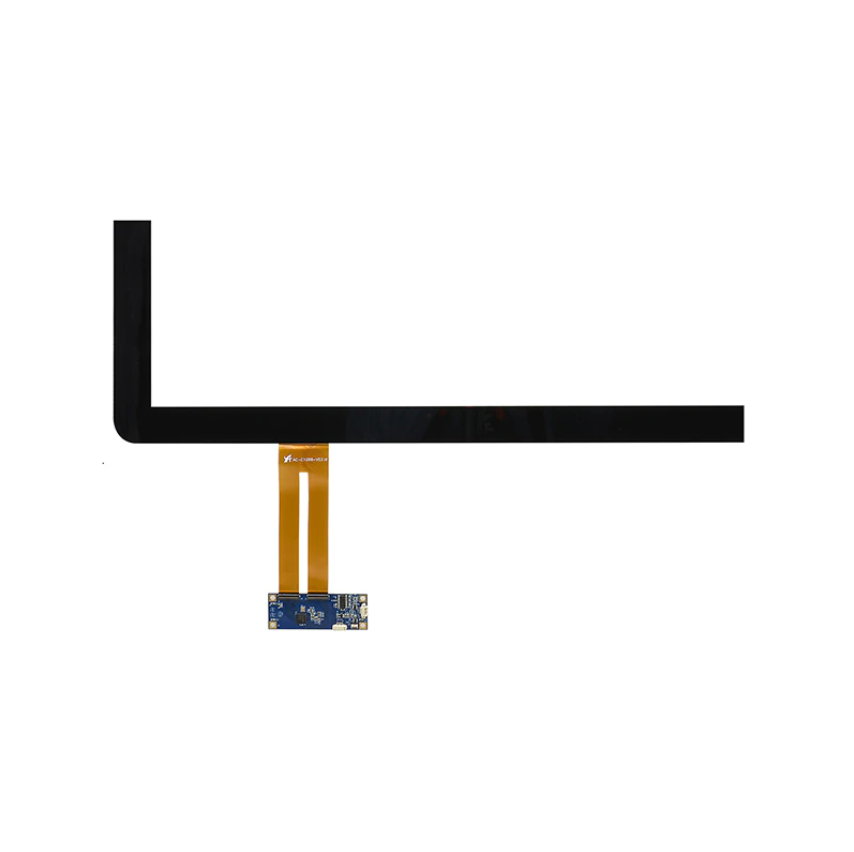

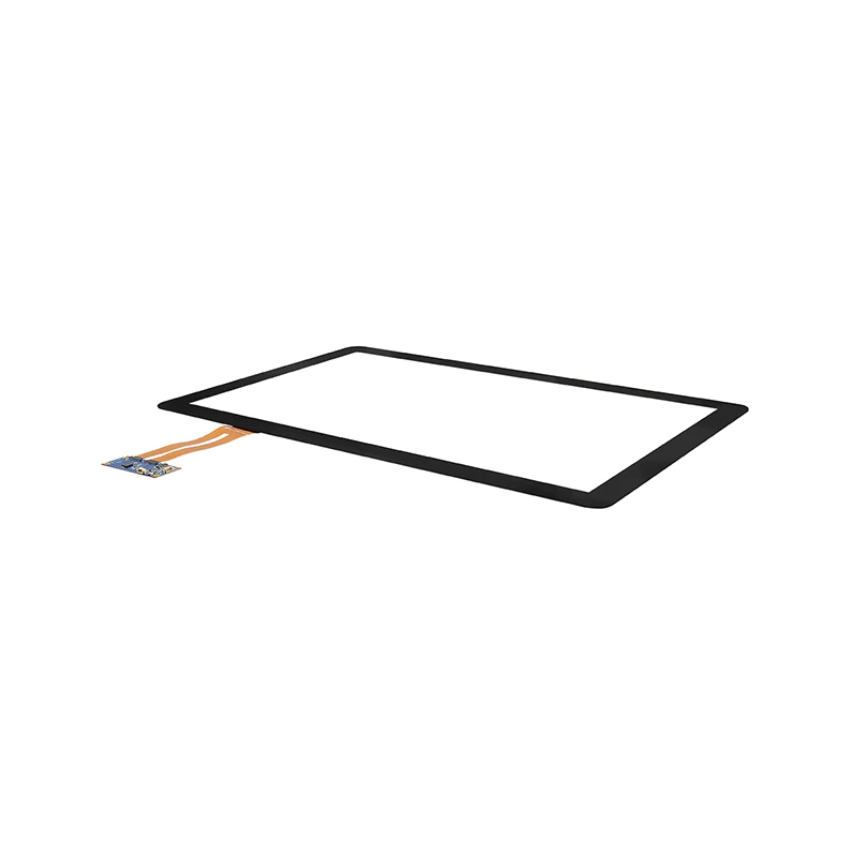

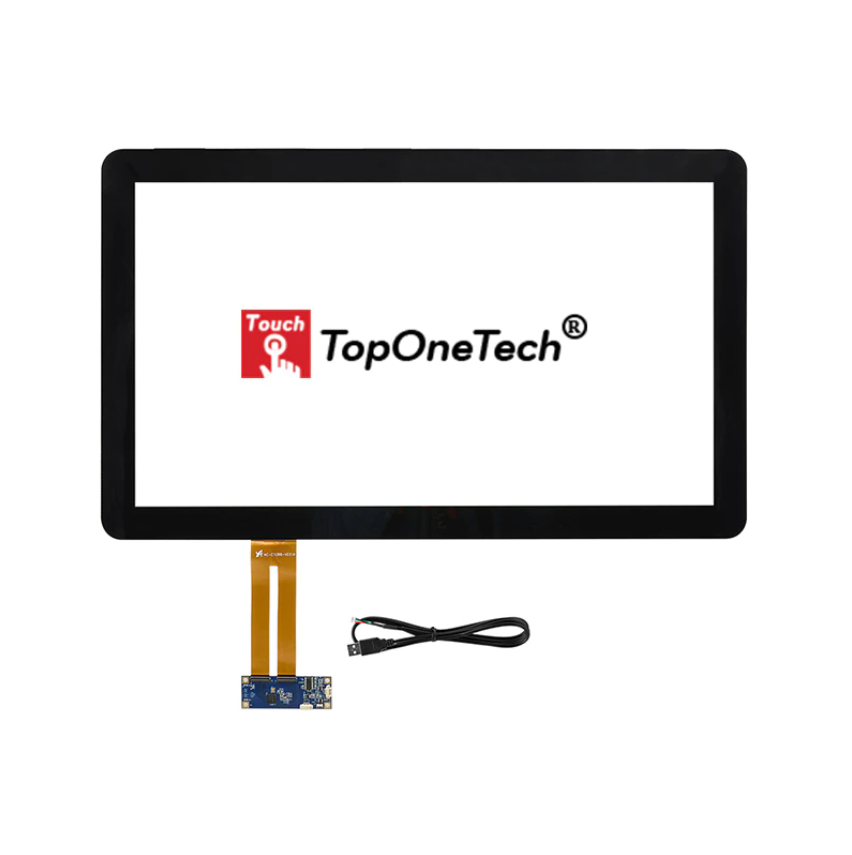

15 inch PCAP touch screen - TopOneTech

15 inch PCAP touch screen - TopOneTech
15 inch PCAP touch screen - TopOneTech
15 inch PCAP touch screen - TopOneTech
15 inch PCAP touch screen - TopOneTech
15 inch PCAP touch screen - TopOneTech
15 inch PCAP touch screen - TopOneTech
15 inch PCAP touch screen - TopOneTech
15 inch PCAP touch screen - TopOneTech
15 inch PCAP touch screen - TopOneTech
15 inch PCAP touch screen - TopOneTech

PRODUCT SPECIFICATIONS

Part Numeber(s)

TOT150UCA111

MOQ

1 piece

Payment

T/T, Western Union, Credit Card, Paypal, L/C

Delivery time

5-8 working days

Start port

EXW Shenzhen, Guangdong

Certification

FCC, CE, ERP

Size

15”

Ratio

4:3

Thickness(mm)

3.9

Connector type

USB

Controller

ILI2302

AA(MM)

305.00*229.01

OD(MM)

339.85*263.85

Surface hardness

6H

Operation voltage

3.3V

Transmittance

≥85%

Operation temperature

 -20℃~+70℃, ≤85%RH

Storage temperature

-30℃~+80℃, ≤85%RH



15 inch PCAP touch screen - TopOneTech
15 inch PCAP touch screen - TopOneTech
www.oemtouchmonitor.com/detail/1428.html
998

PRODUCT INTRODUCTION

15 inch PCAP touch screen - TopOneTech


Toponetech’s 15 inch Projected Capacitive (PCAP) Touchscreens through various touch panel structures including anti-sacratched glass layers. Due to its highly durable and smooth surface,PCAP touch screen monitor is suitable for industrial touch screen dispaly  applications,Gaming,Transprotation,and so on.the waterproof technology of Projected capacitive touchscreen, which can be operated with Works with water,dust,oil,moisten and provides a high-quality touch experience under harsh condition. (up to 10 touch points). Toponetech offers both standard and custom industrial open frame display sizes, Toponetech’s 15 inch projected capacitive touch screens are form, fit or function replacements for 3M™ and Elo™ touch sensors


DRAWING

15 inch PCAP touch screen 3D drawing

APPLICATIONS

15 inch touch screen dispaly applications
